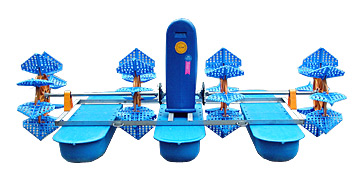

High Speed Paddlewheel Aerator
Brand Name: TEAM

Country of Origin: Taiwan

Key Specifications/Special Features:

  1. 1 HP, adopt new patent water-breaking impeller. Higher and wider water splash with much faster RPM for super high aeration. Water splash is higher by 4 - 37 cm, wider by 11 cm and faster by 14 -16 RPM that create strong water current and super aeration.
  2. Save machine buying cost and power consumption due to the professional water-breaking and parabola design.
  3. Adjustable impeller (patented) .
  4. Synthetic aluminum / magnesium electric motor, heat dissipation is faster at least by 30%.
  5. #304, 25mm stainless steel shaft .
  6. #304 stainless steel frame .
  7. Plastic bearing (patented) .
  8. New high density polyethylene (HDPE) floaters and motor cover.
  9. High quality parts for long lasting performance.

Primary Competitive Advantages:

  • Guarantee/Warranty
  • Product Features
  • Product Performance

Export Markets:

  • Worldwide

TA-55H, TA55HH (1HP, 2 impellers)



TA-55M (1HP, 4 impellers, 121 RPM)







Specification:

Model
HP
Voltage
Impeller
RPM/Min
Ampere/220V
Capacity of a full 20 feet container

TA-55H
1 HP
200 ~ 460 V
2 pcs
143
3.0 ~ 3.6A
80 units

TA-55HH
1 HP
200 ~ 460 V
2 pcs
156
3.0 ~ 3.6A
80 units
TA-55M
1 HP
200 ~ 460 V
4 pcs
121
3.0 ~ 3.6A
50 units
